2017-2020 Ford F-150 / Raptor, Dual ARB Compressor Kit

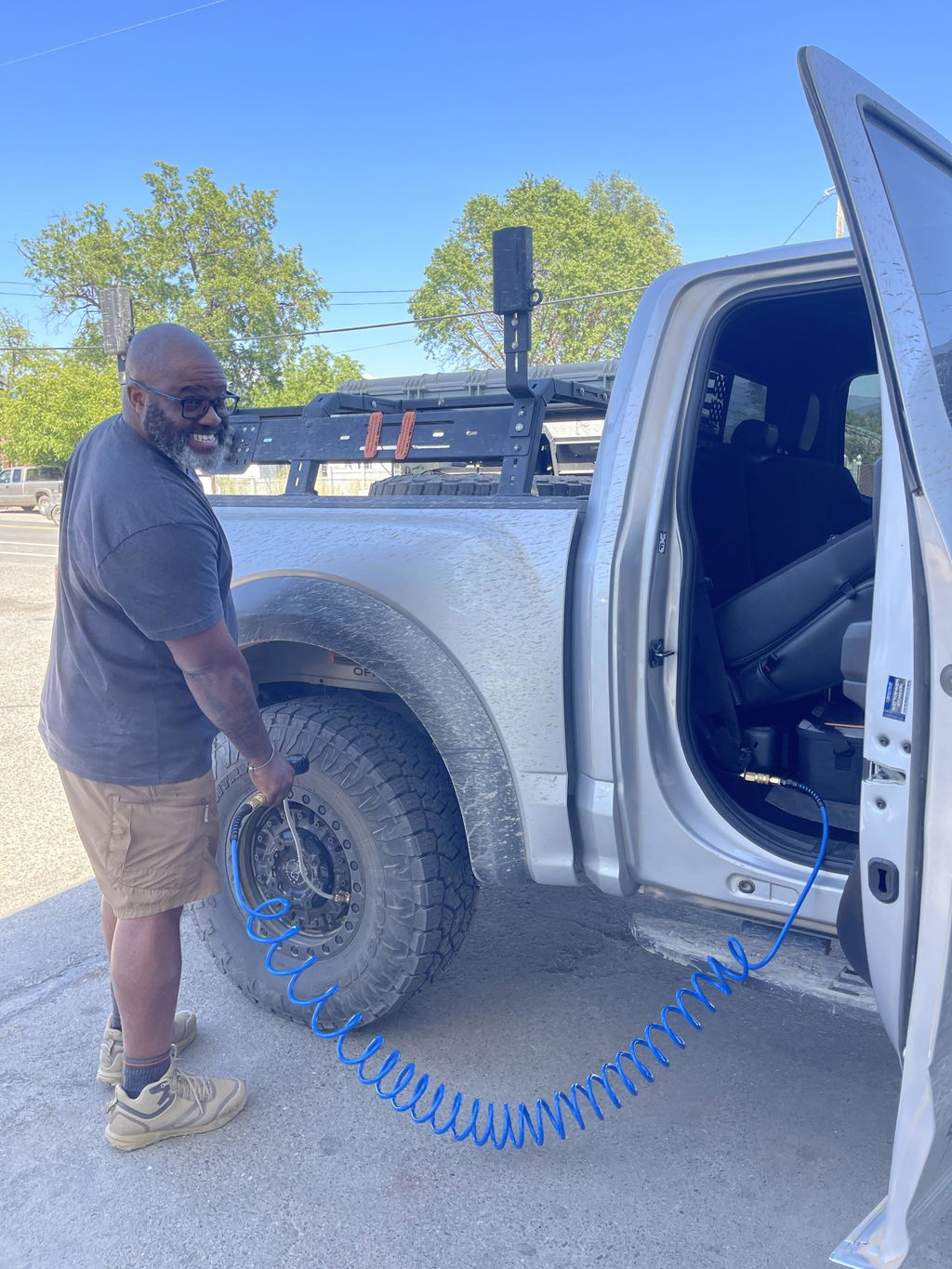

Have you been looking to add compressed air to your Ford Raptor, F-150? The current options out on the market are very limited. You either run an inferior compressor hard mounted under the frame rails of the vehicle being exposed to harsh environments or use a portable mount that is bulky and cumbersome to use.

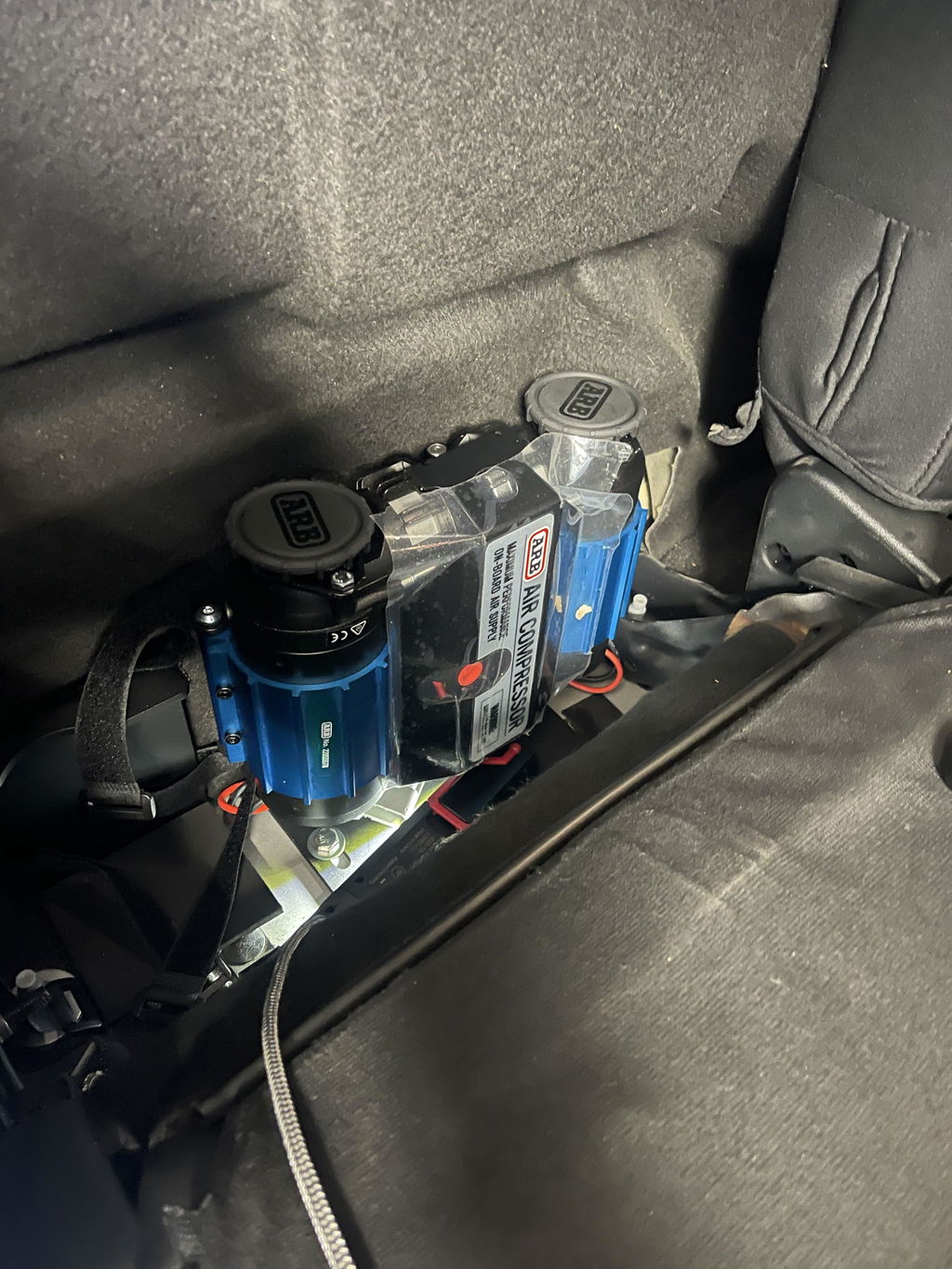

By replacing the factory scissor jack behind the rear seat, with a 4 ton bottle jack it cleared up enough room to mount the compressor and provided a secure mounting location for the compressor. In addition it allowed for additional storage of airlines and other commonly used air tools.
This kit is 100% complete with very detailed installation instructions. 6 gauge duplex marine grade wiring is cut to length, properly crimped terminals, heat shrink tubing installed, 80 Amp fuse breaker, powdercoated 3/16" thick steel brackets, 25 foot airline, fittings, hoses, couplers, 1/4" air line, as well as a hammer lug crimping tool provided that will allow you to crimp the final two terminals on your end. The only item you will need to source on your end is a 4 ton bottle jack, we recommend the following.
Trucks these days are very expensive and we understand the value of time. We did not want to create a half finished kit that required the customer to spend half the day driving around sourcing parts to finish out this product. This kit can be installed by the average person in their garage with basic hand tools. Installation time will take ~4 hours and utilizes the factory up fitter switches for operation.
This kit will is 100% complete with the exception of the ARB twin air compressor PN CKMTA12 and 4 ton bottle jack, no additional sourcing of parts is required for installation.
Made in the USA.
